100L×3 Lycopene Supercritical CO2 Extraction Machine
1, The CO2 SFE Machine is a high-pressure systematic device which changes the CO2 between its gas, liquid and supercritical state for extraction and separation of materials and for process of system circulation.
2, No use of organic solvent, hence no pollution of extracts.
3, Operation at low temperature, hence no damage to natural active components.
4, High selectivity of extracts. High concentration of components.
5, Easy separation of CO2 from extracts.
6, No discharge of solid waste, waste gas or waste water.
7, It is widely used in Pharmaceutical, cosmetics, food, health products, new materials and other fields.
| No. |
Type |
Specification |
Pressure |
Flow |
Area |
Height |
Capacity of
raw material
|
| 1 |
5L+1L |
two extractors two separators |
500bar |
60L/H |
10 m2 |
2.5 m |
testing purpose |
| 2 |
10L |
three extractors two separators |
500bar |
100L/H |
10 m2 |
3 m |
10 to 20 kg |
| 3 |
25LX3 |
three extractors two separators |
350bar ~ 750bar |
300L/H |
20 m2 |
4.5 m |
50 to 150 kg |
| 4 |
50LX3 |
three extractors two separators |
350bar ~ 750bar |
600L/H |
80 m2 |
5.5 m |
0.1 to 0.3 ton |
| 5 |
100LX3 |
three extractors two separators |
350bar ~ 750bar |
1000L/H |
130 m2 |
7 m |
0.2 to 0.6 ton |
| 6 |
200LX3 |
three extractors two separators |
350bar ~ 750bar |
1500L/H |
200 m2 |
8.5 m |
0.5 to 1.2 ton |
| 7 |
300LX3 |
three extractors two separators |
350bar ~ 750bar |
2500L/H |
300 m2 |
9 m |
0.7 to 2 ton |
| 8 |
400LX3 |
three extractors two separators |
350bar ~ 750bar |
3500L/H |
400 m2 |
9.5 m |
1 to 2.5 ton |
| 9 |
500LX3 |
three extractors two separators |
350bar ~ 750bar |
4000L/H |
450 m2 |
10 m |
1 to 3 ton |
| 10 |
600LX3 |
three extractors two separators |
350bar ~ 750bar |
4000L/H |
500 m2 |
10 m |
1.5 to 3.5 ton |
| 11 |
800LX3 |
three extractors two separators |
350bar ~ 550bar |
6000L/H |
540 m2 |
12 m |
2.5 to 4.5 ton |
| 12 |
1000LX3 |
three extractors two separators |
350bar ~ 550bar |
8000L/H |
540 m2 |
14 m |
3 to 6 ton |
| 13 |
1500LX3 |
three extractors two separators |
350bar ~ 550bar |
15000L/H |
600 m2 |
14 m |
3.5 to 8 ton |
| 14 |
2000LX3 |
three extractors two separators |
350bar ~ 550bar |
15000L/H |
600 m2 |
16 m |
5 to 12 ton |
| 15 |
3500LX3 |
three extractors two separators |
350bar ~ 550bar |
25000L/H |
700 m2 |
16 m |
8 to 18 ton |
| 16 |
5000LX3 |
three extractors two separators |
350bar ~ 550bar |
25000L/H |
800 m2 |
16 m |
12 to 24 ton
|
Product Tags:
|
|

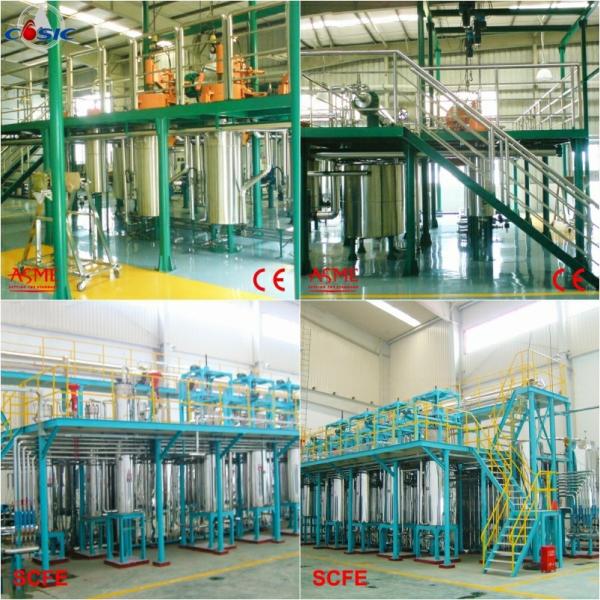

100L×3 Lycopene Carbon Dioxide Extraction Machine Images
|
